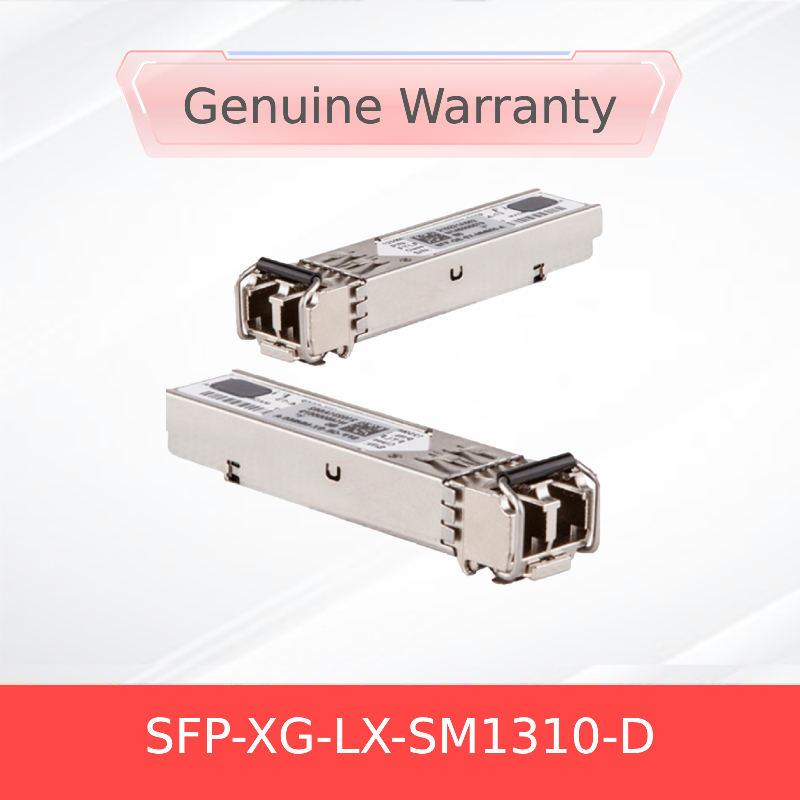

High Quality New H3c SFP-Xg-Lx-Sm1310 Module Versatile H3c Gigabit Module

Detalles del producto

Model NO.:

SFP-Xg-Lx-Sm1310-D

Transmission Rate:

10g SFP+

Ports:

≦8

Weight (G):

21.4

Center Wavelength (Nm):

1310

Transport Package:

Carton

Specification:

57.50*14.55*12.05mm

Trademark:

H3C

Origin:

China

Productos relacionados

H3c Switch Lscm2gt48sc8 Ethernet Board for Optimal Data Transfer

Consiga el mejor precio

Reliable H3c Switch Lscm2gt48sc8 Ethernet Board for Optimal Data Transfer

Consiga el mejor precio

H3c Ls-5120V3 52-Port Switch for Seamless Network Connectivity

Consiga el mejor precio

H3c Ls-5120V3: 52-Port High-Speed Network Switch for Businesses

Consiga el mejor precio

Éntrenos en contacto con

86-186-1839-4729

Elva@cnstarsurge.com

Contacto ahora

Descripción de producto

The H3C 10G series optical modules use advanced technology, with the characteristics of low power consumption, high-speed transmission, hot-swappable support, and low cost, to meet the urgent needs of modern networks for stable and efficient data transmission. This optical module can achieve a high-speed transmission rate of 10 Gbps, providing stable and efficient data transmission performance for modern networks. It is suitable for high-bandwidth transmission requirements in a variety of scenarios, and provides reliable support for large-capacity data transmission and high-performance computing. The 10G optical module adopts a low-power design to effectively reduce the energy consumption of data centers and network equipment, achieve energy conservation and environmental protection, and reduce operating costs. Due to its stability and reliability, 10G optical modules are widely used in a variety of application scenarios such as data centers, backbone transmission, routing products, servers, and access networks, providing users with reliable solutions.

10G SFP+ optical transceiver (LC interface).
10G SFP+ optical transceiver (LC interface) is designed for interconnection between 10G ports, SFP+ package, LC interface. When the center wavelength is 850nm, the maximum transmission distance is 500m. When the center wavelength is 1310nm, the maximum transmission distance is 10km. When the center wavelength is 1550nm, the maximum transmission distance is 80km.

10G SFP+ optical transceiver (SC interface)
10G SFP+ optical modules (SC interfaces) include SFP-XG-PR30-U-SM1270 and SFP-XG-PRX30-U-SM1310. The module is designed for interconnection between 10G ports, SFP+ package, SC interface, and supports a maximum transmission distance of 20km.

10G SFP+ EPON OLT optical transceiver (SC interface)
The 10G SFP+ EPON OLT optical transceiver (SC interface) includes SFP-XG-PR30-D-SM1577-C and SFP-XG-PR40-D-SM1577-C. The module is designed for interconnection between 10G ports of OLT equipment, SFP+ package, SC interface, and supports a maximum transmission distance of 20km .

External model	Center wavelength (nm)	Fiber Mode	Ber	Connector type	Fiber Diameter (μm)	Mode bandwidth (MHz*km)	Transmission distance	Transmission rate
SFP-XG-LX-SM1310-D	1310	SMF	1E-12	2*LC	9/125	-	10km	10.31Gbps

External model	connector	Interface Metrics (dBm)
External model	connector	Output optical power	Receives optical power	Receive sensitivity (OMA)	Overload Optical Power (AVG)
SFP-XG-LX-SM1310-D	LC connectors	-8.2~+0.5	-14.4~+0.5	-12.6	+0.5

External model	Dimensions (LxWxH, mm)	Weight (g)	Power Consumption (W)
SFP-XG-LX-SM1310-D	57.5014.5512.05	21.4	1
