Cat 6A Patch Cord with 28AWG Stranded Copper and 2M Length for 500 MHz 10GbE Networking

Cat 6A Patch Cord with 28AWG Stranded Copper and 2M Length for 500 MHz 10GbE Networking

Datos del producto:

Nombre de la marca: Commscope
Número de modelo: PC-C6AU-LSB1-WH-2M
Documento: PC-C6AU-LSB1-WH .pdf

Pago y Envío Términos:

Cantidad de orden mínima: 1 Uds.
Precio: Negotiate
Detalles de empaquetado: caja
Tiempo de entrega: Basado en el inventario
Condiciones de pago: T/T
Capacidad de la fuente: Suministro por proyecto/lote
Mejor precio Contacto

Información detallada

Clase ANSI/TIA: 6A Tipo de cable: U/UTP (sin blindaje)
Tipo de conductor: Alambre duro Interfaz, conector A: Enchufe RJ45
Características de la interfaz: Estándar interfaz del conector A: Enchufe RJ45
Longitud: 2m
Resaltar:

28AWG Cat 6A Patch Cord

,

2M Length Ethernet Cable

,

500 MHz Network Cable

Descripción de producto

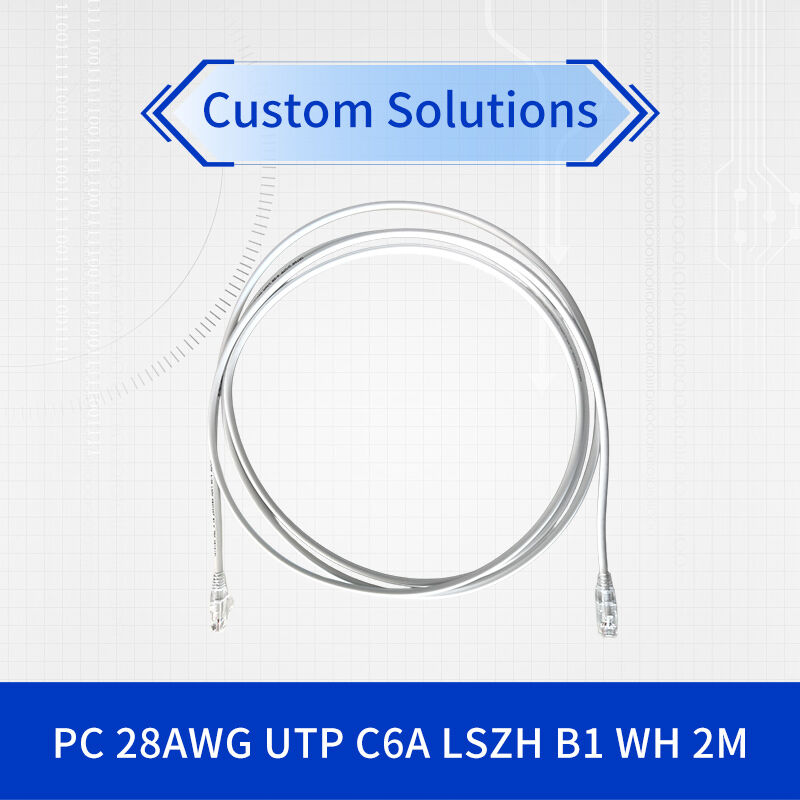

CommScope CAT6A 28AWG U/UTP LSZH Network Patch Cord

Next-Generation High-Density Connectivity for Demanding Network Environments

Ultra-Slim Profile

28AWG construction with 5.2mm diameter enables superior cable management and increased port density in crowded network

Advanced Network Connectivity Solution

The CommScope CAT6A 28AWG U/UTP LSZH patch cord represents a significant advancement in network infrastructure technology. This high-performance networking cable combines cutting-edge materials engineering with precision manufacturing to deliver exceptional reliability in the most demanding environments.

Designed for IT professionals and network engineers, this Ethernet cord provides the perfect balance of performance, safety, and space efficiency. The innovative 28AWG design allows for unprecedented density while maintaining full CAT6A transmission capabilities.

Technical Specifications

Parameter Specification Standard/Value
Performance Standards Transmission Category ANSI/TIA-568.2-D CAT6A, ISO/IEC 11801 Class EA
Physical Construction Conductor Specification 28AWG Stranded Copper, U/UTP Design

Cable Diameter 5.2mm Ultra-Slim Profile
Connector System Interface Type 8P8C RJ45, T568B Configuration

Durability Rating 750+ Insertion Cycles Minimum
Environmental Specs Operating Range -10°C to +60°C Temperature

Safety Compliance LSZH Jacket, GB/T 31247 B1

Application Environments
