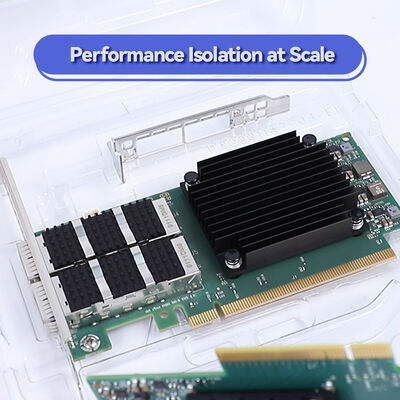

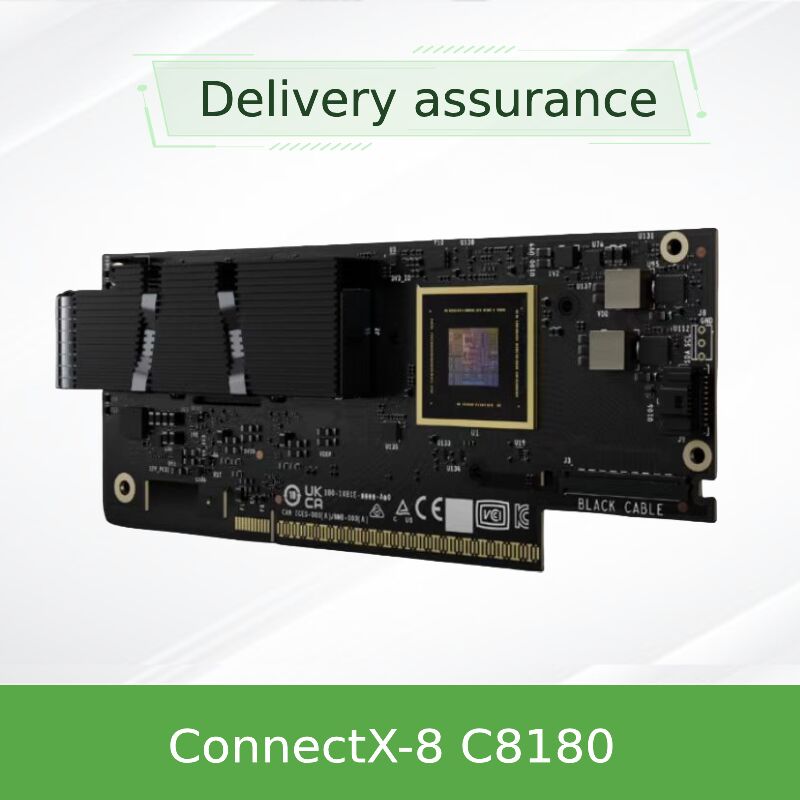

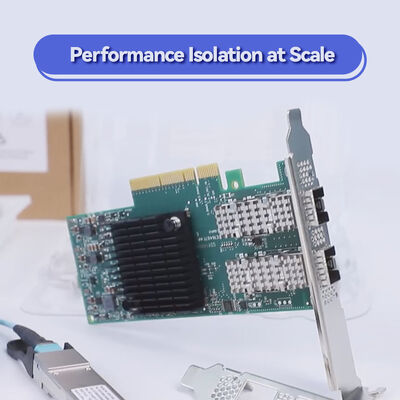

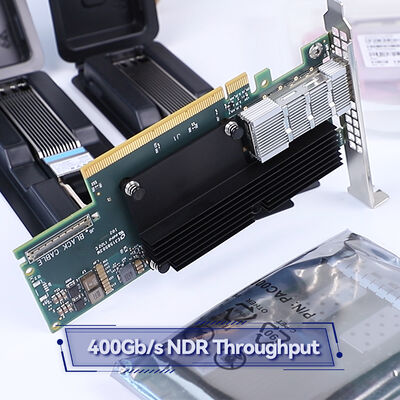

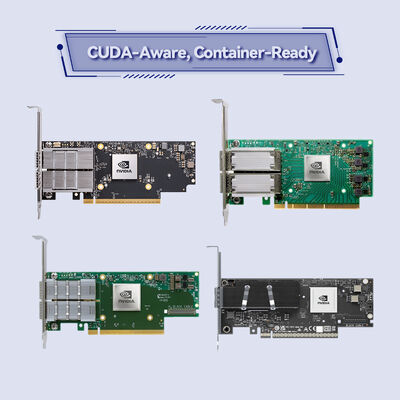

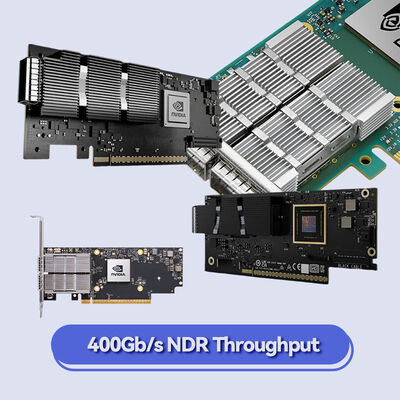

NVIDIA ConnectX-8 SuperNIC C8180-DT0 800G High-Density AI Fabric for Large-Scale GPU Clusters
Datos del producto:
| Nombre de la marca: | Mellanox |
| Número de modelo: | C8180 (900-9X81E-00EX-DT0) |
| Documento: | connectx-datasheet-connectx...1).pdf |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 Uds. |
|---|---|
| Precio: | Negotiate |
| Detalles de empaquetado: | Caja exterior |
| Tiempo de entrega: | Basado en el inventario |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Suministro por proyecto/lote |
|
Información detallada |
|||
| Modelo NO.: | C8180 (900-9X81E-00EX-DT0) | tasa de transmisión: | 400GBE |
|---|---|---|---|
| Puertos: | Puerto dual | Función: | Lacp, apilable, soporte de VLAN |
| Tecnología: | Infiniband | Interfaz de host: | Gen6 x16 |
| Tipo de interfaz: | QSFP112 | Marca: | Mellanox |
| Resaltar: | NVIDIA ConnectX-8 SuperNIC 800G,High-Density AI Fabric network card,GPU cluster network card with warranty |
||
Descripción de producto
NVIDIA ConnectX-8 SuperNIC C8180-DT0 800G High-Density AI Fabric
Model: 900-9X81E-00EX-DT0 | Multi-Host | High Density | AI Factory Optimized
The DT0 (Density / Hyperscale) variant is engineered for AI factories operating 10,000+ GPUs. Features NVIDIA Multi-Host technology (up to 4 hosts per adapter), advanced power management (under 28W typical), and telemetry-based congestion control for predictable large-scale performance.
Product Overview - Hyperscale Edition
NVIDIA ConnectX-8 SuperNIC C8180-DT (900-9X81E-00EX-DT0) is purpose-built for hyperscale AI operators. Unlike standard enterprise SKUs, the DT0 variant includes Multi-Host PCIe capabilities allowing a single adapter to serve up to four independent host processors — reducing NIC count per rack and lowering total cost of ownership. Enhanced telemetry and programmable congestion control ensure consistent tail latency across thousands of GPU nodes.
Hyperscale Advantages
- 4:1 Multi-Host consolidation (4 hosts per NIC)
- <28W typical power at full 800G load
- Advanced telemetry: per-flow latency, queue depth, ECN marking
- Adaptive routing support for load-balanced fabrics
- SHARPv3 in-network reduction for collective operations
Scalability Metrics
- Supports AI clusters of 100,000+ GPUs
- 16 million I/O channels per adapter
- Up to 8 logical ports via splitter cables
- Zero packet loss at line rate (PFC + ECN)
- RDMA over Converged Ethernet v2 (RoCEv2)
Multi-Host Architecture
| Configuration | Hosts Supported | Total Bandwidth per Host | Use Case |
|---|---|---|---|
| 1 Host | 1 | 800Gb/s | Maximum single-host throughput |
| 2 Hosts | 2 | 400Gb/s each | Balanced dual-node density |
| 4 Hosts | 4 | 200Gb/s each | Maximum rack density |
Target Deployments - Hyperscale AI Factories
- Large language model training clusters (GPT-5 scale)
- Autonomous vehicle training infrastructure
- Cloud provider GPU-as-a-service platforms
- National supercomputing centers
- AI semiconductor design simulation farms
Power & Thermal Optimization
The DT0 variant features enhanced power gating and dynamic voltage scaling, achieving 25-28W typical at 800Gb/s line rate — 15% more efficient than previous generation. Passive cooling sufficient for 1U servers with adequate front-to-back airflow.
Hong Kong Starsurge Group Co., Limited
As a specialized networking hardware provider since 2008, Starsurge serves hyperscale clients across APAC, North America, and Europe. For C8180-DT bulk procurement (500+ units), contact our hyperscale team for custom pricing and logistics.
Quiere saber más detalles sobre este producto
