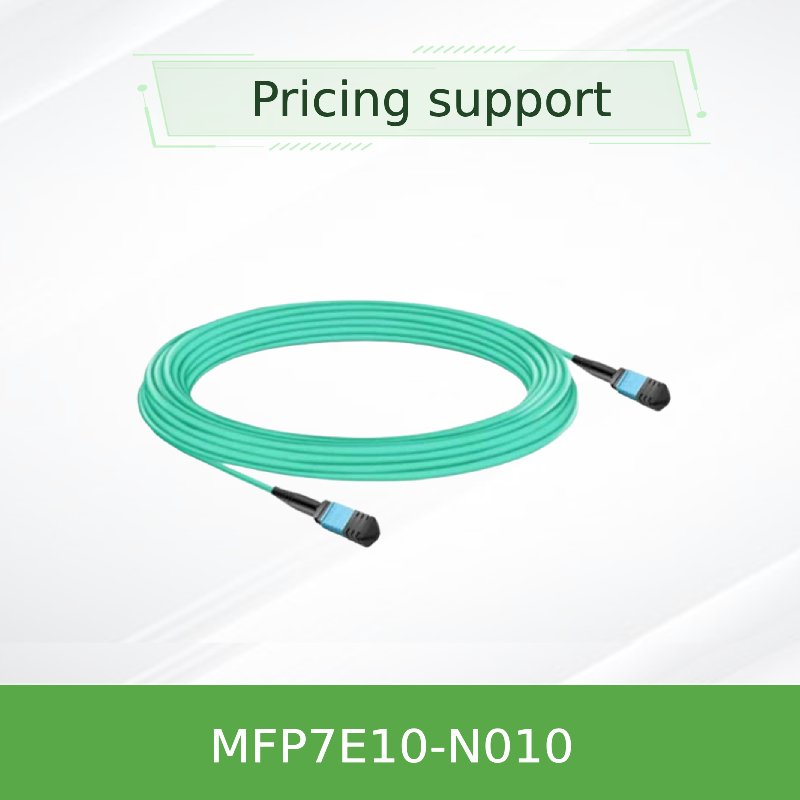

NVIDIA MFP7E10-N010 10m MPO-12/APC to MPO-12/APC Multimode Fiber Optic Cable for 400G/NDR InfiniBand & Ethernet

Product Model: MFP7E10-N010 | Core Keywords: fiber optic cable, MPO cable, 400G interconnect, NDR cable, data center fiber

The NVIDIA MFP7E10-N010 is a premium-quality 10-meter passive fiber optic cable designed for high-density, high-bandwidth data center interconnects. This cable assembly utilizes MPO-12/APC connectors on both ends and houses 50/125μm OM4 multimode fibers configured in a Type-B (crossover) topology. It serves as a critical 400G interconnect component, enabling reliable, low-latency point-to-point links between 400/800Gb/s optical transceivers in NVIDIA networking equipment.

• Connector Type: MPO-12, Angled Polish (APC), Female on both ends.
• Cable Length & Type: 10-meter OM4 50/125μm multimode fiber, Type-B crossover.
• Maximum Supported Distance: Up to 50 meters with OM4 fiber, ideal for extended reach within data center rows.
• Cable Jacket: Flexible, round Aqua-colored LSZH-OFNR jacket.
• Optical Performance: Insertion loss ≤ 0.35 dB + 0.0004 x Length, Return loss ≥ 35 dB.
• Protocol Support: InfiniBand NDR/HDR/EDR 400/200/100GbE NVLink

This interconnect solution is built on industry-proven standards to ensure performance and interoperability.

• Fiber Standard: OM4 Multimode Fiber (IEC 60793-2-10).
• Connector Standard: MPO per IEC 61754-7 and ANSI/TIA-604-5.
• Polish Technology: Angled Physical Contact (APC) for reduced optical return loss.
• Safety & Compliance: Complies with Telcordia GR-1435, Laser Class 1 (IEC 60825), with CB, cTUVus, CE certifications.
• Environmental Material: LSZH jacket meets strict fire safety and toxicity regulations.

This passive MPO cable functions as a precise optical highway. Within each MPO connector, 12 fiber positions exist, with 8 active for bidirectional communication (4 transmit, 4 receive lanes). Engineered as a Type-B cable, it internally crosses the transmit and receive pairs. Specifically, the optical signal from Tx lane 1 at one end is routed to Rx lane 12 at the opposite end. This precise crossover alignment ensures transmitter lasers correctly couple to receiver photodetectors. The 8° angled end face of the APC connector is critical at 400G speeds, as it deflects reflected light away from the fiber core, preserving signal clarity and minimizing errors—a fundamental requirement for a reliable NDR cable.

• Data Center Spine-Leaf Fabric: Connecting 400G switches across racks within a row.
• High-Performance Computing Clusters: Forming low-latency links between compute nodes and storage in NDR InfiniBand networks.
• AI/ML Infrastructure: Providing high-bandwidth connectivity between GPU servers and aggregation switches.
• Storage Area Networks (SAN): Connecting storage arrays to high-speed networks via NVMe over Fabrics (NVMe-oF).

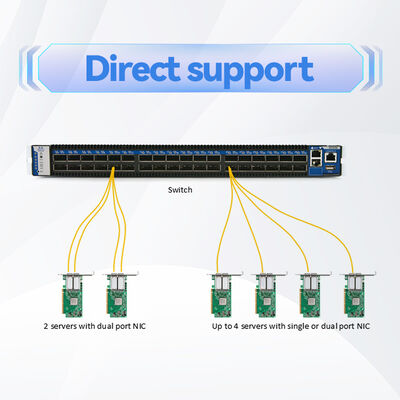

• Switch to Network Interface Card Links: Connecting top-of-rack switches to servers equipped with ConnectX-7 adapters or BlueField-3 DPUs.

Note: Also available in lengths from 3m to 50m (MFP7E10-N003 to MFP7E10-N050).

• Validated Ecosystem Integration: Unlike generic fiber cables, this product is tested and guaranteed to work seamlessly within the NVIDIA networking ecosystem, reducing deployment risk.
• Future-Proof Design: The APC polish and OM4 fiber ensure readiness for current 400G and future speed advancements, protecting infrastructure investment.
• Superior Build Quality & Consistency: Rigorous manufacturing controls and end-to-end testing deliver reliable performance and lower total cost of ownership by minimizing link failures.
• Optimal for Medium-Reach Applications: The 10-meter length fills a critical gap between short DAC cables and long-haul optics, providing a cost-effective solution for common data center layouts.

We provide comprehensive support for all our products, ensuring a seamless customer experience.

• Warranty: Full manufacturer warranty provided with every unit.
• Inventory & Delivery: The MFP7E10-N010 is held in our extensive $10M+ inventory for fast shipment and bulk order fulfillment.
• Technical Expertise: Our specialized team offers pre-sales design consultation and 24/7 post-sales technical support.
• Global Logistics Network: We ensure reliable, tracked delivery to customers worldwide, backed by over a decade of experience in global hardware distribution.

Q1: What devices is the MFP7E10-N010 cable compatible with?
A: This data center fiber cable is compatible with any device equipped with MPO-12/APC receptacles, specifically NVIDIA switches, ConnectX-7 adapters, and BlueField-3 DPUs using supported 400G OSFP or QSFP112 transceivers.

Q2: Can I use this cable for 200GbE or 100GbE connections?
A: Yes. The cable is backward compatible. When used with appropriate 200G (HDR) or 100G (EDR/100GbE) transceivers, it will operate at those lower speeds without issue.

Q3: What is the difference between this and an Active Optical Cable (AOC)?
A: This is a passive fiber optic cable. It contains only optical fibers and requires separate, pluggable optical transceivers. An AOC has transceivers permanently attached to both ends. Passive solutions like this offer greater flexibility and transceiver choice.

Q4: How do I identify an MPO-12/APC connector?
A: NVIDIA's MPO-12/APC connectors typically have a green connector body. In contrast, MPO-12/UPC connectors (for lower speeds) usually have a blue body. Do not mix them.

Q5: Is cleaning necessary before installation?
A: Absolutely. To ensure optimal performance and prevent damage, always clean the MPO ferrule on both the cable end and the transceiver port using a certified optical cleaner before mating the connection.

• Connector Compatibility: Verify transceivers use MPO-12/APC interfaces. Forcing connection to MPO-UPC ports will cause permanent damage.
• Environmental Limits: Adhere to specified operating and storage temperature/humidity ranges to maintain performance and longevity.
• ESD Precautions: Always use an ESD wrist strap when handling the transceivers this cable connects to, as they are static-sensitive.
• Physical Handling: Avoid tight bends (maintain >30mm radius), sharp kinks, excessive pulling, or crushing the cable. Use appropriate cable management.
• Certifications: Full regulatory certification details (FCC, CE, etc.) are available upon request from our technical support team.
