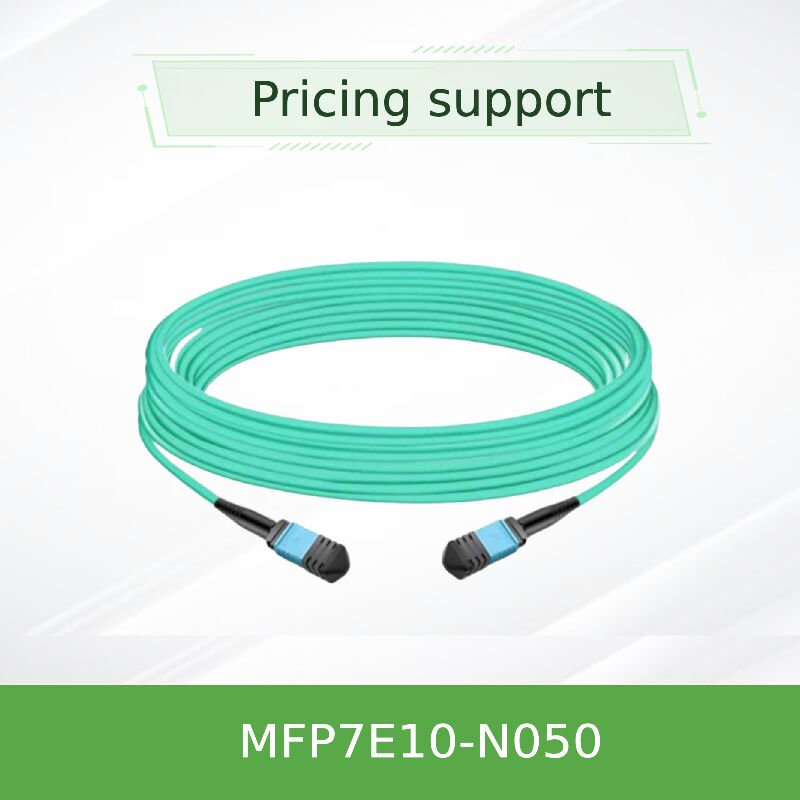

NVIDIA mellanox MFP7E10-N050 50m MPO-12/APC Multimode Fiber Cable OM4 Type-B for 800G/400G
Datos del producto:
| Nombre de la marca: | Mellanox |
| Número de modelo: | MFP7E10-N050 (980-9i57y-00n050) |
| Documento: | MFP7E10-Nxxx.pdf |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 Uds. |
|---|---|
| Precio: | Negotiate |
| Detalles de empaquetado: | Caja exterior |
| Tiempo de entrega: | Basado en el inventario |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | Suministro por proyecto/lote |
|
Información detallada |
|||
| Modelo: | MFP7E10-N050 | Longitud: | 50 m |
|---|---|---|---|
| Tipo de fibra: | Multimodo OM4 | Conectores: | MPO-12/APC (hembra) |
| Pérdida de inserción: | ≤ 0.37 dB | Pérdida de devolución: | ≥ 35 dB |
| Resaltar: | Mellanox OM4 multimode fiber cable,NVIDIA Mellanox 50m MPO-12 cable,800G 400G fiber optic cable |
||
Descripción de producto
NVIDIA MFP7E10-N050 50m MPO-12/APC to MPO-12/APC multimode fiber cable with 8 active fibers—engineered for long-distance 800G twin-port OSFP and 400G QSFP112 optical transceivers in large-scale InfiniBand NDR and 400GbE data center fabrics.
- MPO-12/APC female to MPO-12/APC female, 8-fiber Type-B crossover configuration
- 50-meter length with 3.0mm diameter, LSZH aqua jacket (OM4 multimode)
- Maximum specified reach for multimode fiber with NVIDIA optical transceivers
- Angled Physical Contact (APC) 8° polish for minimal back reflection
- Insertion loss ≤0.35 + 0.0004*L dB, Return loss ≥35dB
- 8-Fiber Type-B Crossover: Fiber 1 connects to fiber 12 at opposite end—ensuring correct Tx-to-Rx alignment for optical transceivers.
- APC Polish: 8-degree angled end face reduces back reflections, critical for signal integrity at 100G PAM4 per lane over maximum distances.
- OM4 Multimode Fiber: 50/125µm fibers optimized for 50m reach with low insertion loss; aqua jacket for easy identification.
- LSZH Jacket: Low Smoke Zero Halogen material for enhanced safety in data center environments.
- Rigorous Testing: 100% insertion loss and return loss tested for reliable out-of-box performance.
The MFP7E10-N050 complies with IEC 61754-7 (MPO connector family), GR-1435, and ANSI/TIA/EIA 604-5. It uses 8 active multimode fibers (50/125µm OM4) with APC 8° polish. The Type-B crossover wiring ensures correct Tx-to-Rx alignment per transceiver pinouts. Suitable for InfiniBand NDR, 400GbE, and NVLink protocols when used with compatible optical modules (MMA4Z00-NS, MMA1Z00-NS).
In a twin-port OSFP 800G transceiver, two 4-lane optical interfaces transmit and receive over separate fibers. The MFP7E10-N050 uses a Type-B crossover scheme: fiber 1 at end A connects to fiber 12 at end B, fiber 2 to fiber 11, etc. This ensures that the transmit laser from lane 1 aligns with the photodetector of lane 12 at the far end. The 8° angled polish (APC) directs any reflected light away from the laser cavity, preventing signal distortion and maintaining low bit error rates at 100G PAM4 per lane over the full 50-meter reach.
- Quantum-2 Switch to Switch: Connect twin-port OSFP 800G switches across multiple rows up to 50m apart.
- Switch to ConnectX-7/BlueField-3: Link ToR switches to 400G adapters in distant racks.
- NVLink Fabrics: Optical interconnection for GPU clusters using NVLink over fiber at maximum reach.
- Hyperscale Data Centers: Long-reach rack-to-rack optical links with patch panels (up to 4 connector junctions).
| Model | Length | Connector Type | Fiber Count | Fiber Type | Jacket | Insertion Loss |
|---|---|---|---|---|---|---|
| MFP7E10-N050 | 50 m | MPO-12/APC female | 8 active + 4 inactive | OM4 (50/125µm) | Aqua LSZH, 3.0mm | ≤0.35 + 0.0004*50 = ≤0.37 dB |
| MFP7E10-N030 | 30 m | MPO-12/APC female | 8 active | OM4 | Aqua LSZH | ≤0.362 dB |
| MFP7E10-N010 | 10 m | MPO-12/APC female | 8 active | OM4 | Aqua LSZH | ≤0.354 dB |
- vs. Copper Cables: Maximum reach (50m) with lower weight, better airflow, and complete EMI immunity.
- APC Polish: Superior return loss (≥35dB) compared to UPC, critical for 100G-PAM4 links over maximum distance.
- Type-B Crossover: Plug-and-play compatibility with NVIDIA transceivers—no need for manual crossover.
- OM4 Performance: Optimized for 50m reach with minimal insertion loss, supporting full 800G bandwidth.
- Clean Before Use: Always clean MPO connectors with appropriate one-click cleaners before insertion—contamination causes link errors.
- Dust Caps: Keep protective caps on until moment of installation; store caps for future use.
- ESD Awareness: Although the cable is passive, it plugs into ESD-sensitive transceivers—use grounded wrist straps.
- Bend Radius: Do not exceed 30mm bend radius; avoid tension on connectors.
- Compatibility: Verify transceiver type (APC vs UPC) before ordering—this cable is APC only.
- Patch Panels: 50m specification assumes up to 4 connector junctions; additional junctions may increase loss.
