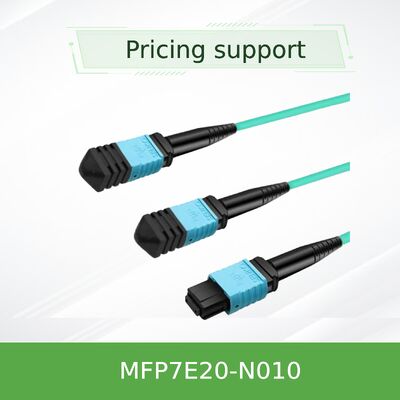

NVIDIA MFP7E20-N010 10m Optical Splitter Cable
MPO-12/APC to Dual MPO-12/APC | 8-Fiber Multimode for 400G/800G InfiniBand & Ethernet
The NVIDIA MFP7E20-N010 is a precision-engineered passive fiber splitter cable designed for high-density 400Gb/s and 800Gb/s data center environments. It enables seamless connectivity from twin-port OSFP transceivers to dual 400Gb/s OSFP or QSFP112 transceivers, supporting NDR InfiniBand and 400GbE applications with 10-meter reach.
Key Facts at a Glance
| Product Number | MFP7E20-N010 |
| Cable Length | 10 meters (32.8 feet) |
| Connector Type | 1x MPO-12/APC (female) to 2x MPO-12/APC (female) |
| Fiber Type | 8-fiber Multimode 50/125μm (OM3 for ≤30m, OM4 for >30m) |
| Application | Split twin-port OSFP (800G) to dual 400G OSFP/QSFP112 |
| Jacket Rating | LSZH (Low Smoke Zero Halogen) / OFNR, Aqua |

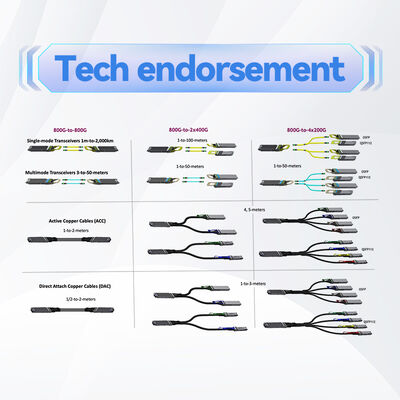

Product Overview
The NVIDIA MFP7E20-N010 is part of the MFP7E20 series passive optical splitter cable family, specifically engineered for next-generation InfiniBand NDR and 400G Ethernet networks. This 10-meter cable features a 1:2 fan-out configuration, converting one MPO-12/APC connector into two MPO-12/APC connectors, enabling twin-port OSFP transceivers (800Gb/s) to connect to two separate 400Gb/s transceivers (OSFP or QSFP112) in ConnectX-7 adapters or BlueField-3 DPUs.
Utilizing 8 active fibers (4 transmit, 4 receive) with Type-B crossover wiring, the cable ensures proper lane mapping (Pin 1 → Pin 12) for optimal signal integrity. The angled physical contact (APC) polish (8-degree angle) minimizes optical back reflection, critical for high-speed PAM4 modulation schemes used in 200G per lane transmission.
Key Features
- 1:2 Fan-Out Splitter Design: Converts one twin-port OSFP (800G) to two independent 400G links.
- MPO-12/APC Connectors: Angled polish (8°) reduces back reflection for superior signal quality in high-speed optical links.
- Type-B Crossover Wiring: Ensures correct lane alignment (Pin 1 to Pin 12) per transceiver optical lane assignment.
- 8 Active Fibers: 4 fibers for transmit, 4 for receive; 4 inactive fibers act as strength members.
- High-Durability Construction: Flexible round LSZH jacket with push-pull latching for easy installation and release.
- Industry Compliance: Meets IEC 61754-7, GR-1435, and Telcordia standards for reliability.
- Protocol Agnostic: Supports InfiniBand NDR/HDR, Ethernet 400GbE, and NVLink protocols.
Optical Technology & Signal Integrity
The MFP7E20-N010 employs MPO-12/APC connectors with an 8-degree angled end face. This precision polish significantly reduces optical return loss (≥35 dB), preventing signal distortion caused by reflected light re-entering the laser source. This is particularly critical for PAM4 modulation used in 200G per lane transmission, where signal-to-noise ratio is paramount.
The Type-B crossover scheme ensures that the transmit fiber from Lane 1 on the switch side aligns with the receive photodetector on Lane 12 of the adapter side, maintaining proper optical channel mapping across the link.
Insertion Loss: ≤ 0.35 + 0.0004 x L (dB) where L = length in meters, ensuring predictable performance over the 10m distance.

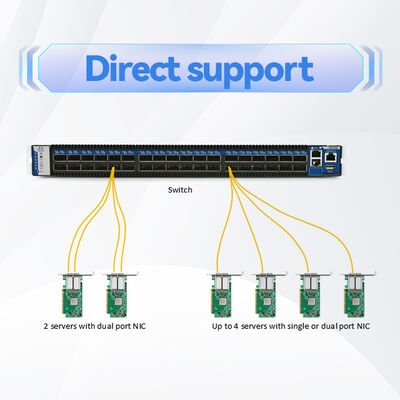

Typical Deployments
- Leaf-Spine Connections: Connecting NVIDIA Quantum-2 switches (with twin-port OSFP) to compute nodes with ConnectX-7 adapters.
- AI Training Clusters: Linking 800G switch ports to dual 400G GPU server interfaces.
- Storage Systems: Interconnecting high-performance storage with BlueField-3 DPUs.
- Data Center Top-of-Rack: Fan-out from high-density core switches to multiple ToR switches or servers.
- Multi-Protocol Environments: Mixed InfiniBand and Ethernet fabrics using compatible transceivers.

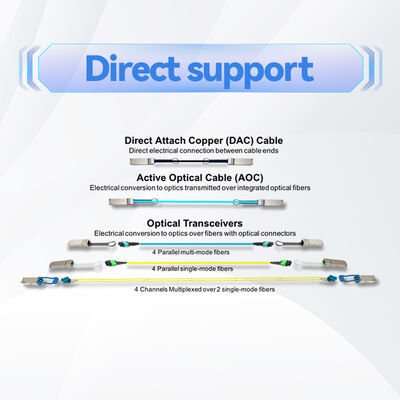

Compatibility & Transceiver Pairing
The MFP7E20-N010 is designed to work with NVIDIA's portfolio of high-speed optical transceivers:
| End | Compatible Transceivers | Application |
|---|---|---|
| Single MPO-12/APC End | MMA4Z00-NS (twin-port OSFP DR8) | Switch side (800G) |
| Dual MPO-12/APC Ends | MMA4Z00-NS400 (OSFP) / MMA1Z00-NS400 (QSFP112) | Adapter side (400G each) |
Note: Both ports on a twin-port OSFP transceiver must use the same cable type (both splitter or both straight). Mixing is not permitted.

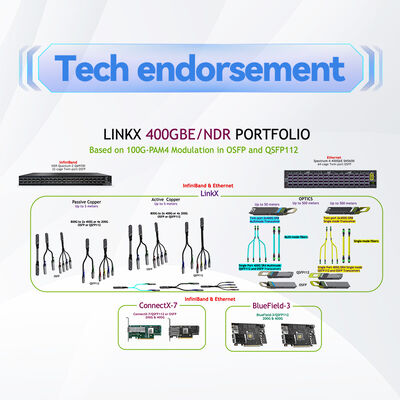

Compatibility Matrix
| Platform | Compatibility |
|---|---|
| NVIDIA Quantum-2 QM9700/QM9790 Series | ✓ Yes (with twin-port OSFP transceivers) |
| NVIDIA ConnectX-7 Adapters | ✓ Yes (with OSFP or QSFP112 cages) |
| NVIDIA BlueField-3 DPUs | ✓ Yes (with appropriate transceivers) |
| Third-party 400G Switches | ✓ When using compatible 400G OSFP/QSFP112 transceivers |
Technical Specifications
| Category | Detail |
|---|---|
| Part Number | MFP7E20-N010 |
| Description | NVIDIA passive fiber cable, MMF, MPO-12/APC to 2x MPO-12/APC, 10m |
| Connector Type | MPO-12/APC female (both ends), green shell |
| Fiber Count | 8 active fibers (4 Tx, 4 Rx) + 4 inactive strength members |
| Fiber Type | Multimode 50/125μm (OM3 for ≤30m, OM4 for >30m) |
| Cable Length | 10 meters (tolerance: +0.1/-0m) |
| Cable Diameter | 3.0 ± 0.2 mm |
| Minimum Bend Radius | 30 mm (anywhere on cable) |
| Jacket Material | LSZH (Low Smoke Zero Halogen), OFNR, Aqua color |
| Insertion Loss (IL) | ≤ 0.35 + 0.0004 x L dB (L=length in meters) |
| Return Loss (RL) | ≥ 35 dB |
| Wiring Topology | Crossed (Type B) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity (Operating) | 10% to 85% RH (non-condensing) |
| Regulatory Compliance | IEC 61754-7, GR-1435, RoHS, CB, cTUVus, CE |
| Laser Safety Class | Class I (IEC 60825-1, 21 CFR 1040) |
| EMC Compliance | CE, FCC Class A, ICES, RCM, VCCI |
Selection Guide: MFP7E20 Series Length Options
| Part Number | Length | Typical Use Case |
|---|---|---|
| MFP7E20-N003 | 3m | Same-rack connections |
| MFP7E20-N005 | 5m | Adjacent rack connections |
| MFP7E20-N007 | 7m | Within row connections |
| MFP7E20-N010 | 10m | Cross-row / end-of-row |
| MFP7E20-N015 | 15m | Cross-aisle connections |
| MFP7E20-N020 | 20m | Multiple racks apart |
| MFP7E20-N030 | 30m | End-of-row to server racks |
| MFP7E20-N050 | 50m | Across data center (with OM4) |
Advantages of MFP7E20-N010
- Optimized 10m Reach: Ideal for typical rack-to-rack distances in modern data centers.
- NVIDIA-Qualified Performance: Factory-tested to ensure out-of-box reliability and compliance with InfiniBand NDR specifications.
- Space-Efficient Design: Flexible 3mm round jacket with push-pull tabs simplifies cable management and installation.
- Future-Proof: Supports 200G per fiber PAM4 modulation, ready for next-generation 1.6T deployments.
- Safety Compliant: LSZH jacket reduces toxic emissions in case of fire, ideal for enclosed data center spaces.
Service & Support by Hong Kong Starsurge
As an experienced provider of network infrastructure since 2008, Starsurge ensures your cabling needs are fully supported:
- Genuine NVIDIA optical cables with full traceability.
- Pre-sales technical guidance on cable length and transceiver matching.
- Global shipping with secure packaging.
- Post-sales support and warranty assistance.
- Bulk order discounts and custom length inquiries welcome.
Buyer Checklist
- Verify transceiver compatibility (twin-port OSFP on switch side, 400G OSFP/QSFP112 on adapter side).
- Confirm cable length requirement: 10m suits most intra-row distances.
- Ensure MPO-12/APC connectors are used (green shell) - not compatible with UPC (blue shell).
- Plan for proper cleaning tools and dust cap management during installation.
- Check operating environment: 0°C to 70°C, humidity 10-85% non-condensing.
Handling & Installation Precautions
- Keep dust caps on until immediately before insertion to prevent connector contamination.
- Always clean both cable connectors and transceiver receptacles using appropriate optical cleaners before mating.
- Avoid tight bends – maintain bend radius ≥30mm to prevent fiber damage and signal loss.
- ESD precautions – while the cable itself is passive, it plugs into ESD-sensitive transceivers; use grounded workstations.
- Do not mix APC and UPC connectors – the 8° angle difference prevents proper mating and may damage connectors.
- Keep away from liquids and excessive dust.
Frequently Asked Questions
A: The MFP7E20 series is a 1:2 splitter cable specifically designed for twin-port OSFP transceivers. It fans out one MPO-12/APC connector into two separate MPO-12/APC connectors, allowing an 800G switch port to connect to two 400G devices. A standard trunk cable would have one-to-one connectivity.
A: Yes, the cable is protocol-agnostic. When used with appropriate transceivers, it supports 200G (using 2 fibers per direction) and is backward compatible with lower speeds, provided the transceivers use MPO-12/APC interfaces.
A: Yes, 10m is typically sufficient for connections within the same row or between adjacent rows, accounting for vertical cable management and overhead tray routing.
A: NVIDIA provides a 1-year limited warranty. Starsurge offers additional support for warranty claims and replacements.
A: The cable ends are labeled '1' and '2' on the splitter tails for identification. The Type-B crossover wiring is pre-configured; no special orientation is needed beyond matching connectors to transceivers.
